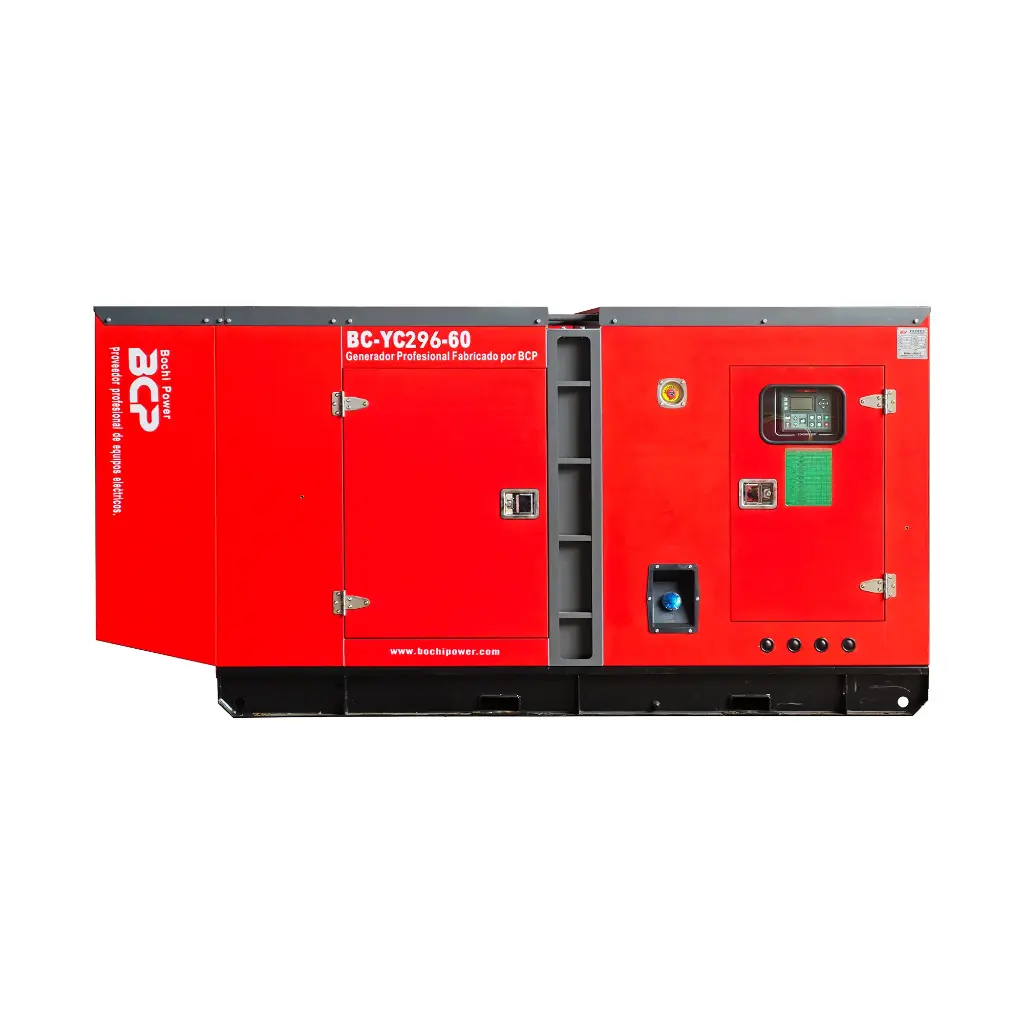

Diesel generator set - YUCHAI BC-YC296D-60 (237 kW / 296 kVA)

Diesel generator set - YUCHAI BC-YC296D-60 (237 kW / 296 kVA)

https://generator.bochipower.com/web/image/product.template/15116/image_1920?unique=1015d5b
(0 review)
Yuchai BC-YC275D-60

Sistema de combustible HPCR.  Tecnología líder de turboalimentación e intercoledada. Combustión de cuatro válvulas y slactracontrol, combustión precisa y rápida, buen emislón, buen rendimiento de transpensa y capacidad de carga Slrong. Bloque de cilindro de alta resistencia, cigüeñal de acero forjado de aleación, bata de conexión de bata de aleación y pistón de canal de aceite de enfriamiento interno hacen que el éngine sea moredurable, con una estructura más ligera y compacta en productos Simllar. En términos de rendimiento y emisión del producto, el cumplimiento de los compromisos del rendimiento de G3 en GB2820 y los requisitos de CHINA LLL (T3) en GB 20891, respectivamente.

$ 21,552.01 21552.01 USD $ 30,788.59 Tax Excluded

30,788.59 Bs Tax Excluded

  • Color
  • Model
  • Generator set series
  • Generator set structure type
  • Brand
  • Emission Standards
  • Engine Model
  • Generator Model
  • Generator set controller model
  • Power (kW)
  • Capacity (kVA)
  • Voltage (V)
  • Frequency / Rotational Speed
  • Phases
  • Dimensions
  • Weight
  • Can it be customized

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Overview

The 296 kVA / 237 kW standby rating defines the BC-YC296D-60, a diesel generator set fitted with YCMK10TAA360-G21, in open configuration, with three-phase four-wire output at 50/60 Hz, 110/208 V – 277/480 V.

At this rating the set backs up a whole building or production line: process plants, industrial units and commercial centres where an outage is not an inconvenience but a production stop with a direct cost. BCP's Yuchai range spans 23 to 3750 kVA with Yuchai power, intended for standby duty and for extended running depending on how the fuel and cooling system is specified.

Typical applications

  • Industrial units and process plants
  • Logistics and distribution centres
  • Hospitals and corporate buildings
  • Food and beverage plants
  • Infrastructure and civil works

Standby and prime ratings

The standby rating (296 kVA / 237 kW) is what the set delivers during a grid outage, for a limited number of hours a year and without sustained overload. The prime rating (PRP) allows continuous duty with varying load. Sizing starts from the real load in kW, corrected by power factor, with headroom left for motor starting.

Frequently asked questions

What is the difference between standby and prime?

Standby is the power available in an emergency, limited to a set number of hours a year; prime is what the set can sustain continuously with varying load. A set sized for standby should not be used as prime generation without re-checking the duty.

What voltage and connection does the BC-YC296D-60 deliver?

It is offered at 110/208 V – 277/480 V, three-phase four-wire, at 50/60 Hz. Final nameplate voltage is fixed at order stage according to the site network and the transfer arrangement.

Is one set of this size better than two smaller ones?

It depends on criticality. A single set simplifies maintenance and footprint; two units give N+1 redundancy but double the capital cost and the service plan.

More from the range

Full Yuchai range: Yuchai diesel generator sets · all series and ratings · generator set catalogue · request a quote.

Similar power ratings

Specifications

Characteristics
Color Black, Red, Yellow, Blue
Frequency / Rotational Speed 50Hz / 1500rpm, 60Hz / 1800rpm
Model BC-YC296D-60
Brand YUCHAI
Emission Standards T 2
Engine Model YCMK10TAA360-G21
Generator Model BCP-274J (241.5 kW / 301.9 kVA)
Power (kW) 237 kilowatts
Capacity (kVA) 296kVA
Voltage (V) 110/208V 127/220V 230/400V 254/440V 277/480V
Phases Three-phase four-wire system
Dimensions 3960*1280*2150mm
Weight 3.550,00 Kg
Generator Set
Generator set structure type Open type, Silent canopy type
Generator set controller model MEBAY DC52D, MEBAY DC52DR, MEBAY DC52CR-4G, MEBAY DC62D, MEBAY DC72DR, MEBAY DC92DR, MEBAY DC100DR, DSE 4520 MKII, DSE 6120 MKII, DSE 6020 MKII, DSE 7320 MKII, DSE 8610 MKII, HGM6120N, HGM9510
Generator set series Diesel series
Can it be customized Can be customized to customer requirements.
