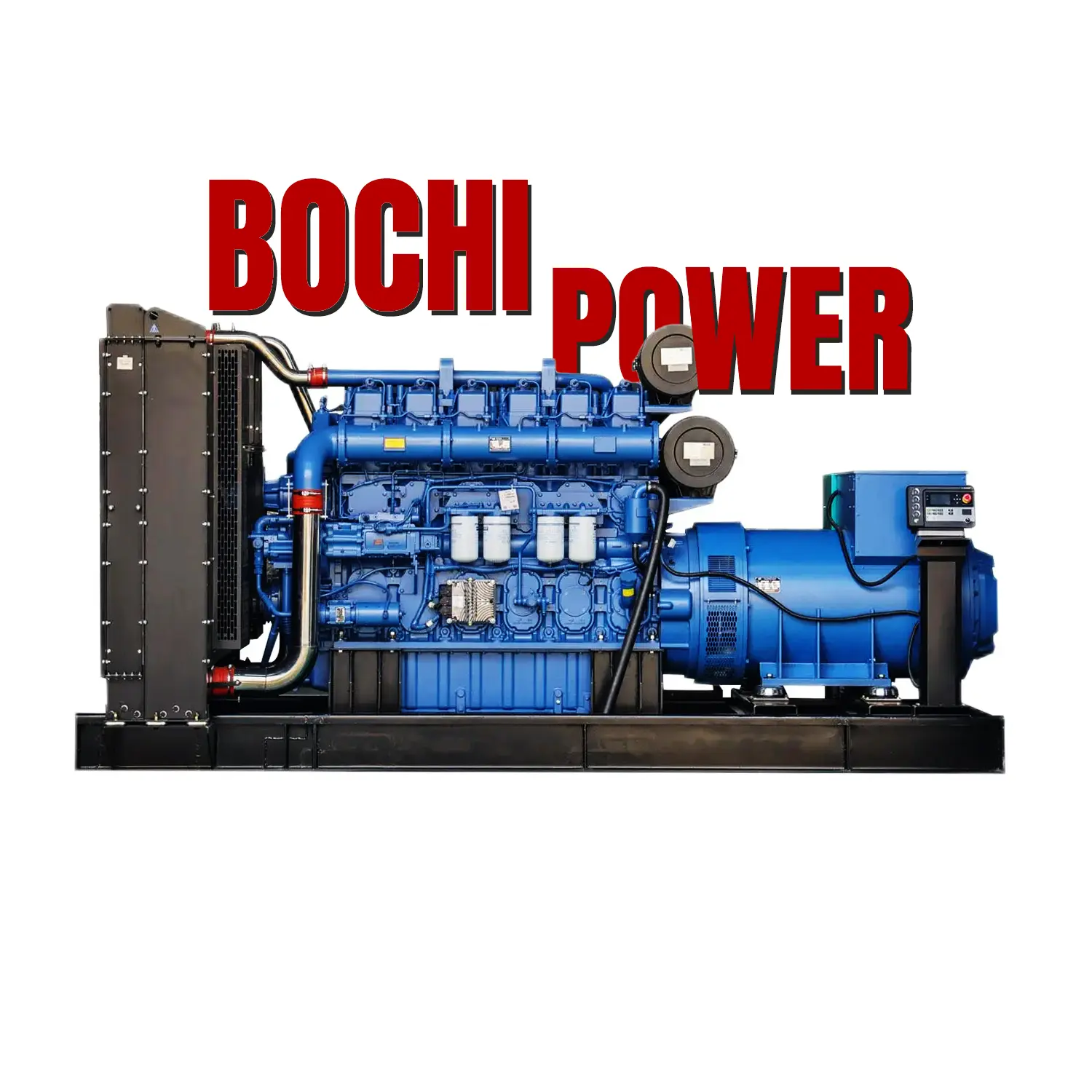

Yuchai & MTU engineYuchai & MTU Diesel Generator Sets
83 configurations from 23 to 3750 kVA. Yuchai & MTU engines with Stamford alternator and matched control panel for prime and standby duty.
YUCHAI & MTU
YUCHAI se estableció en 1951. Como gran grupo empresarial estatal de China, sus negocios cubren la fabricación de motores, la industria de energía nueva y otros campos. Su gama de productos es completa, se vende en más de 180 países y regiones. Con una fuerte capacidad de I+D, mantiene una posición líder en la industria a largo plazo.
Alcance del negocio: Abarca tres sectores: fabricación de motores y su cadena industrial, servicios logísticos y de cadena de suministro, e industria de energía nueva y servicios relacionados. Los productos incluyen motores diésel, motores de gas, sistemas de potencia híbridos y eléctricos puros, además de maquinaria de construcción, equipos de saneamiento ambiental, equipos especiales, piezas de motores, etc. Proporciona productos y servicios a más de 180 países y regiones.
YUCHAI es también contratista de MTU en China. La cooperación entre ambas partes integra profundamente la introducción tecnológica y la innovación localizada. A través de la empresa conjunta Yuchai MTU Power, Yuchai produce la serie de motores diésel de alta velocidad y gran potencia de MTU. Estos productos no solo heredan las ventajas centrales de MTU en rendimiento dinámico, eficiencia de combustible y fiabilidad, sino que también se optimizan para las demandas operativas de China y el mercado de Asia-Pacífico. Se aplican ampliamente en grandes embarcaciones, grupos electrógenos de alta gama, vehículos pesados especiales y otros campos.
Specifications
Series YUCHAI&MTU
| Powered by YUCHAI | 400V, 1500RPM, 50Hz | |||||||
|---|---|---|---|---|---|---|---|
| Bochi Power Model | kVA Standby | kVA Prime | Engine Model | Stamford Alternator | Dimension mm Open Type | Dimension mm Silent Type | Data Sheet |
| BC-YC23D-50 | 23 | 20 | YC4V35-D20 | S0L2-M1 | 1700*650*1000 | — | — |
| BC-YC34D-50 | 34 | 30 | YC4V45Z-D20 | S0L2-L1 | 1700*650*1000 | — | — |
| BC-YC41D-50 | 41 | 38 | YC4V55Z-D20 | S1L2-X1 | 1700*700*1000 | — | — |
| BC-YC44D-50 | 44 | 40 | YC4D60-D25 | S1L2-Y1 | 1800*700*1000 | — | — |
| BC-YC69D-50 | 69 | 63 | YC4D90Z-D25 | UCI224E1 | 1900*750*1100 | — | — |
| BC-YC75D-50 | 75 | 69 | YC4A100Z-D20 | UCI224E1 | 1900*750*1100 | — | — |
| BC-YC113D-50 | 113 | 100 | YC4A140L-D25 | UCI274D1 | 2100*1100*1300 | — | — |
| BC-YC138D-50 | 138 | 125 | YC4A180L-D20 | UCI274E1 | 2200*1100*1400 | — | — |
| BC-YC150D-50 | 150 | 125 | YC6B180L-D20 | UCI274E1 | 2200*1100*1400 | — | — |
| BC-YC165D-50 | 165 | 150 | YC6B205L-D20 | UCI274E1 | 2300*1100*1500 | — | — |
| BC-YC193D-50 | 193 | 175 | YC6A230L-D20 | UCI274G1 | 2400*1100*1500 | — | — |
| BC-YC206D-50 | 206 | 188 | YC6A245L-D21 | UCI274H1 | 2500*1100*1600 | — | — |
| BC-YC275D-50 | 275 | 250 | YC6MK350L-D20 | UCDI274K1 | 2900*1100*1600 | — | — |
| BC-YC344D-50 | 344 | 313 | YC6MK420L-D20 | S4L1D-C41 | 3100*1100*1850 | — | — |
| BC-YC388D-50 | 388 | 350 | YC6MK460L-D20 | S4L1D-F41 | 3100*1100*1850 | — | — |
| BC-YC400D-50 | 400 | 375 | YC6MK480L-D20 | S4L1D-F41 | 3200*1200*1850 | — | — |
| BC-YC413D-50 | 413 | 375 | YC6MJ500-D21 | S4L1D-F41 | 3250*1200*1600 | — | — |
| BC-YC440D-50 | 440 | 400 | YC6MJ540-D30 | S4L1D-F41 | 3250*1200*1700 | — | — |
| BC-YC495D-50 | 495 | 450 | YC6MJ600-D30 | S4L1D-F41 | 3450*1400*1800 | — | — |
| BC-YC550D-50 | 550 | 500 | YC6T660L-D20 | S4L1D-G41 | 3500*1400*1900 | — | — |
| BC-YC625D-50 | 625 | 563 | YC6TD780-D31 | S5L1D-F41 | 3500*1400*1900 | — | — |
| BC-YC688D-50 | 688 | 625 | YC6TD840-D31 | S5L1D-F41 | 3600*1400*1900 | — | — |
| BC-YC750D-50 | 750 | 688 | YC6TD900-D31 | S5L1D-E4 | 3600*1400*2200 | — | — |
| BC-YC825D-50 | 825 | 750 | YC6TD1000-D31 | S5L1D-H4 | 4100*1900*2200 | — | — |
| BC-YC880D-50 | 880 | 800 | YC6TD1100-D30 | S5L1D-D4 | 4200*2000*2200 | — | — |
| BC-YC1000D-50 | 1000 | 913 | YC6TH1220-D31 | S6L1D-D4 | 4200*2000*2200 | — | — |
| BC-YC1125D-50 | 1125 | 1000 | YC6TH1320-D31 | S6L1D-F4 | 4200*2000*2200 | — | — |
| BC-YC1250D-50 | 1250 | 1125 | YC6C1520-D31 | S6L1D-F4 | 4300*2000*2200 | — | — |
| BC-YC1375D-50 | 1375 | 1250 | YC6C1660-D31 | S6L1D-G4 | 4400*2000*2200 | — | — |
| BC-YC1500D-50 | 1500 | 1375 | YC12VTD1830－D30 | S6L1D-H4 | 4600*2200*2450 | — | — |
| BC-YC1650D-50 | 1650 | 1500 | YC12VTD2000－D30 | S7L1D-C4 | 4600*2300*2450 | — | — |
| BC-YC1856D-50 | 1856 | 1688 | YC16VTD2270-D30 | S7L1D-E41 | 4700*2300*2450 | — | — |
| BC-YC2063D-50 | 2063 | 1875 | YC16VTD2510-D30 | S7L1D-H41 | 4800*2400*2500 | — | — |
| BC-YC2200D-50 | 2200 | 2000 | YC16VTD2700-D30 | S7L1D-G41 | 5300*2400*2600 | — | — |
| BC-YC2475D-50 | 2475 | 2250 | YC16VC3000-D31 | S7L1D-G41 | 5500*2500*2600 | — | — |
| BC-YC2750D-50 | 2750 | 2500 | YC16VC3300-D31 | PI734H1 | 5800*2600*2700 | — | — |
| BC-YC3000D-50 | 3000 | 2750 | YC16VC3600-D31 | PI734H1 | 6000*2700*2800 | — | — |
| BC-YC3250D-50 | 3250 | 3000 | YC16VC4000-D31 | PI734H1 | 6100*2700*2800 | — | — |
| BC-YC3375D-50 | 3375 | 3125 | YC16VC4200-D30 | PI734H1 | 6100*2700*2800 | — | — |
| BC-YC3500D-50 | 3500 | 3250 | YC16VC4500-D30 | PI734H1 | 6200*2700*3000 | — | — |
| BC-YC3750D-50 | 3750 | 3500 | YC16VC4900-D30 | PI734H1 | 6500*2700*3100 | — | — |
| Powered by YUCHAI | 220V, 440V 480V, 1800RPM 60Hz | |||||||
|---|---|---|---|---|---|---|---|
| Bochi Power Model | kVA Standby | kVA Prime | Engine Model | Stamford Alternator | Dimension mm Open Type | Dimension mm Silent Type | Data Sheet |
| BC-YC25D-60 | 25 | 23 | YC4V35-D21 | S0L2-M1 | 1400*650*1000 | — | — |
| BC-YC35D-60 | 35 | 31 | YC4V45Z-D21 | S0L2-L1 | 1500*650*1000 | — | — |
| BC-YC41D-60 | 41 | 38 | YC4V55Z-D21 | S1L2-X1 | 1500*700*1000 | — | — |
| BC-YC50D-60 | 50 | 44 | YC4D65-D20 | S1L2-Y1 | 1500*700*1000 | — | — |
| BC-YC63D-60 | 63 | 56 | YC4D80Z-D20 | S1L2-Y1 | 1700*700*1000 | — | — |
| BC-YC75D-60 | 75 | 69 | YC4D100Z-D20 | UCI224E1 | 1800*700*1000 | — | — |
| BC-YC100D-60 | 100 | 88 | YC6B130Z-D20 | UCI224G1 | 1900*750*1100 | — | — |
| BC-YC106D-60 | 106 | 94 | YC4D140-D33 | UCI224G1 | 1900*750*1100 | — | — |
| BC-YC113D-60A | 113 | 100 | YC4D155-D33 | UCI274D1 | 1900*750*1100 | — | — |
| BC-YC113D-60B | 113 | 100 | YC6B160Z-D20 | UCI274D1 | 1900*750*1100 | — | — |
| BC-YC125D-60 | 125 | 113 | YC4D180-D33 | UCI274D1 | 2200*1100*1400 | — | — |
| BC-YC165D-60A | 165 | 150 | YC4A205-D32 | UCI274E1 | 2300*1100*1500 | — | — |
| BC-YC165D-60B | 165 | 150 | YC6B210L-D20 | UCI274E1 | 2300*1100*1500 | — | — |
| BC-YC200D-60 | 200 | 188 | YC6A245-D32 | UCI274G1 | 2400*1100*1500 | — | — |
| BC-YC220D-60 | 220 | 200 | YC6MK265Z-D20 | UCI274H1 | 2900*1100*1600 | — | — |
| BC-YC225D-60 | 225 | 206 | YC6A285-D32 | UCI274H1 | 2300*1100*1500 | — | — |
| BC-YC238D-60 | 238 | 213 | YC6A305-D32 | UCI274H1 | 2400*1100*1500 | — | — |
| BC-YC275D-60 | 275 | 250 | YC6MK360L-D20 | UCDI274K1 | 2500*1100*1600 | — | — |
| BC-YC350D-60A | 350 | 313 | YC6MK420-D31 | S4L1D-E41 | 3000*1200*1600 | — | — |
| BC-YC350D-60B | 350 | 313 | YC6MK420L-D21 | S4L1D-E41 | 3000*1200*1600 | — | — |
| BC-YC400D-60A | 400 | 375 | YC6MJ515L-D22 | S4L1D-F41 | 3200*1200*1600 | — | — |
| BC-YC400D-60B | 400 | 375 | YC6MK500-D32 | S4L1D-F41 | 3500*1400*1900 | — | — |
| BC-YC550D-60 | 550 | 500 | YC6T660L-D21 | S4L1D-G41 | 3500*1400*1900 | — | — |
| BC-YC650D-60 | 650 | 575 | YC6TD780-D32 | S5L1D-F41 | 3600*1400*1900 | — | — |
| BC-YC688D-60 | 688 | 625 | YC6TD840-D32 | S5L1D-F41 | 3600*1400*2200 | — | — |
| BC-YC713D-60 | 713 | 650 | YC6TD940-D32 | S5L1D-F41 | 4100*1900*2200 | — | — |
| BC-YC825D-60 | 825 | 750 | YC6TD1020-D32 | S5L1D-H4 | 4200*2000*2200 | — | — |
| BC-YC1000D-60A | 1000 | 900 | YC6TH1070-D33 | S6L1D-D4 | 4200*2000*2200 | — | — |
| BC-YC1000D-60B | 1000 | 900 | YC12VTD1350-D32 | S6L1D-D4 | 4200*2000*2200 | — | — |
| BC-YC1100D-60 | 1100 | 1000 | YC6TH1350-D33 | S6L1D-E4 | 4300*2000*2200 | — | — |
| BC-YC1250D-60 | 1250 | 1125 | YC12VTD1500-D32 | S6L1D-F4 | 4300*2000*2200 | — | — |
| BC-YC1375D-60A | 1375 | 1250 | YC12VTD1680-D33 | S6L1D-G4 | 4400*2000*2200 | — | — |
| BC-YC1375D-60B | 1375 | 1250 | YC12VTD1680-D32 | S6L1D-G4 | 4400*2000*2200 | — | — |
| BC-YC1500D-60A | 1500 | 1375 | YC12VTD1860-D33 | S6L1D-H4 | 4600*2200*2450 | — | — |
| BC-YC1500D-60B | 1500 | 1375 | YC12VTD1860-D32 | S6L1D-H4 | 4600*2200*2450 | — | — |
| BC-YC1650D-60A | 1650 | 1500 | YC12VTD2070-D33 | S7L1D-C4 | 4600*2300*2450 | — | — |
| BC-YC1650D-60B | 1650 | 1500 | YC12VTD2070-D32 | S7L1D-C4 | 4600*2300*2450 | — | — |
| BC-YC1813D-60 | 1813 | 1650 | YC12VC2170-D33 | S7L1D-E41 | 4700*2300*2450 | — | — |
| BC-YC1900D-60 | 1900 | 1750 | YC16VTD2270-D32 | S7L1D-F41 | 4800*2400*2500 | — | — |
| BC-YC2063D-60 | 2063 | 1875 | YC16VTD2510-D32 | S7L1D-H41 | 5300*2400*2600 | — | — |
| BC-YC2250D-60 | 2250 | 2063 | YC16VTD2700-D32 | S7L1D-G41 | 5500*2500*2600 | — | — |
| BC-YC2750D-60 | 2750 | 2500 | YC20VTD3300-D30 | PI734H1 | 5800*2600*2700 | — | — |
— = not supplied by the engine manufacturer.
FAQ
Six questions buyers ask
about selection and delivery
Not covered here? Tell us the project conditions and an engineer will come back with a recommendation.
Talk to an engineerCan you build a configuration for our project?
Yes. Send the power requirement, voltage and frequency, duty (prime or standby) and the installation conditions to mktg@bochipower.com, and we will come back with a selection and configuration proposal.
How long does a design proposal take?
Once the parameters are complete we start the selection right away, and standard configurations are answered first. Non-standard work — paralleling, soundproofed or containerised sets, special voltages — is quoted after engineering review.
How many years have you been building this equipment?
32 years, working only on diesel generator sets.
Which certifications do the units carry?
CE and ISO, plus OEM certification for CUMMINS, VOLVO PENTA, MTU, PERKINS, BAUDOUIN, YUCHAI, WEICHAI, SDEC, DOOSAN and MITSUBISHI.
What should we include in an enquiry?
The model or power range, voltage and frequency, open / soundproofed / containerised, quantity and delivery port. The more complete the enquiry, the faster the quotation.
