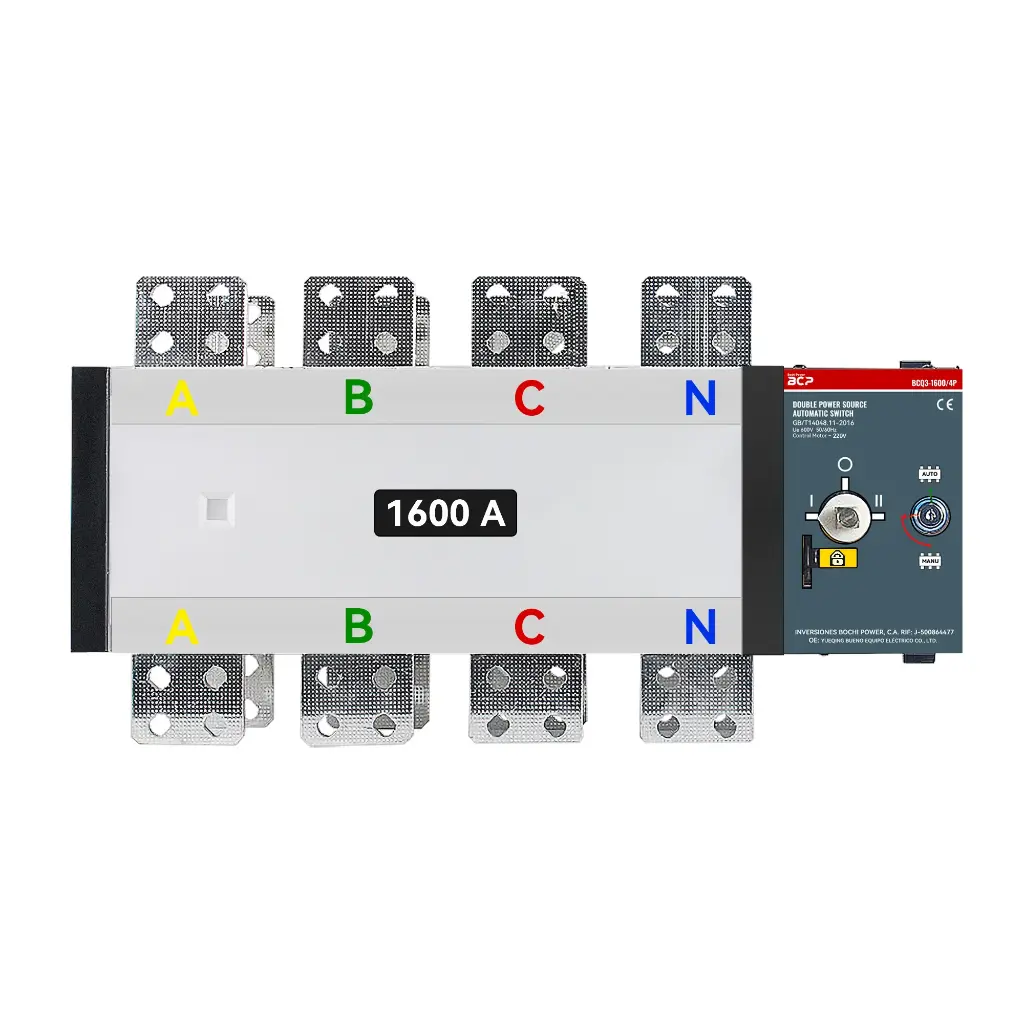

Automatic Transfer Switch ATS BCQ3-1600/1600A 220V/4P is the automatic transfer switch: it senses the mains failure, starts the set, transfers the load and returns it once the mains is stable.
Most ATS failures are not in the switch but in its logic: a drifting mains-sensing relay, an open control fuse or a cut signal wire. The symptom is a set that starts but never takes load.
Specifications and compatibility
- Brand
- BCP
- Electrical type
- Low-voltage electrical equipment category
- Voltage (V)
- 220 VAC
- Amperage
- 1600 A
- Pole
- 4P
How to verify before ordering
- Match the number of poles, the rated current and the switching type (contactor or motorised breaker).
- Check the ATS control voltage: 110 V, 220 V or 24 V depending on the panel it goes into.
- Confirm whether neutral is switched. On installations with a distributed neutral this is mandatory.
Frequently asked questions
The set starts but the load is not transferred. What do I check?
The signal first: mains-sensing relay, control fuse and the wiring between ATS and set. Then the interlock: if the mains contactor does not release, the generator contactor will not close, by design.
Can I fit an ATS of another brand?
Yes, as long as control voltage and logic are compatible with the set panel. With a controller-based set, the ATS must accept that controller transfer signal.
Related parts
- Transferencia Automatica ATS BCQ3-2500/2500A 220V/4P
- Transferencia Automática ATS BCQ3-1000/1000A 220V/4P
- Transferencia Automática ATS BCQ3-1000/800A 220V/4P
- Transferencia Automatica ATS BCQ3-3200/3200A 220V/4P
- Transferencia Automatica ATS BCQ3-630/630A 220V/4P
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 1600 A |
| Voltage (V) | 220 VAC |
| Brand | BCP |
| Pole | 4P |
| Electrical power | |
|---|---|
| Electrical | ATS, Low-voltage product category |
