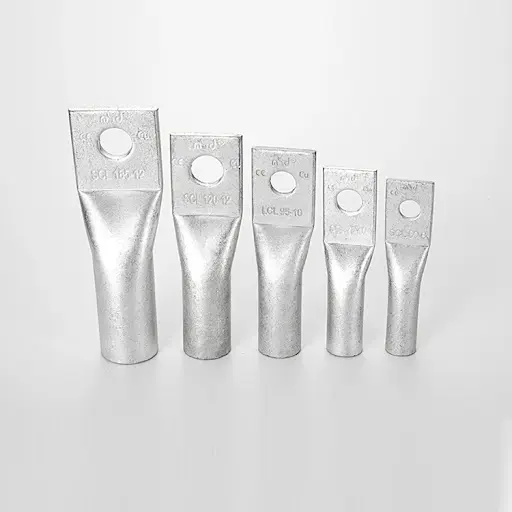

Tinned copper terminals - series SCL

Tinned copper terminals - series SCL

https://generator.bochipower.com/web/image/product.template/3117/image_1920?unique=f96a0a5
(0 review)

$ 0.00 Tax Excluded

0.00 Bs Tax Excluded

  • Model

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Tinned Copper Terminals - SCL Series is an auxiliary electrical part: part of the set wiring, protection or indication.

Before replacing, measure continuity and voltage under load. A terminal that shows continuity at no load can drop completely once current flows, and that is the case that wastes the most time.

Specifications and compatibility

Model
1000Kcmil (506.04mm 2)

How to verify before ordering

  • Match voltage, current and conductor cross-section to what the circuit demands.
  • Check the connection type (screw, spring, crimp) and terminal gauge.
  • Confirm the IP rating if the part sits in an exposed area of the panel.
  • The reference shown on this listing is 1000Kcmil (506.04mm 2); cross-check it against the one stamped on the removed part.

Frequently asked questions

Why does a terminal get hot?

Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.

Can I fit a relay with a higher amp rating?

You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Model 250 Kcmil (126,60 mm2), 300 Kcmil (152,10 mm2), 350 Kcmil (177,60 mm2), 400 Kcmil (202,20 mm2), 450 Kcmil (227,93 mm2), 500 Kcmil (252,90 mm2), 600 Kcmil (304,00 mm2), 650 Kcmil (329,00 mm2), 700 Kcmil (355,00 mm2), 750 Kcmil (380,99 mm2), 1000 Kcmil (506,04 mm2), 18 CAE (0,82 mm2), 16 AWG (1,32 mm2), 22 CAE (0,33 mm2), 17 AWG (1,03 mm2), 15 AWG (1,65 mm2), 14 AWG (2,06 mm2), 13 AWG (2,63 mm2), 12 AWG (3,3 mm2), 11 AWG (4,17 mm2), 10 AWG (5,26 mm2), 9 AWG (6,63 mm2), 8 AWG (10,61 mm2), 7 AWG (8,37 mm2), 6 AWG (13,30 mm2), 5 AWG (16,40 mm2), 4 AWG (21,20 mm2), 3 AWG (26,70 mm2), 2 AWG (33,60 mm2), 1 AWG (42,36 mm2), 1/0 AWG (53,49 mm2), 2/0 AWG (67,40 mm2), 3/0 CAE (85,01 mm2), 4/0 AWG (107,20 mm2)
