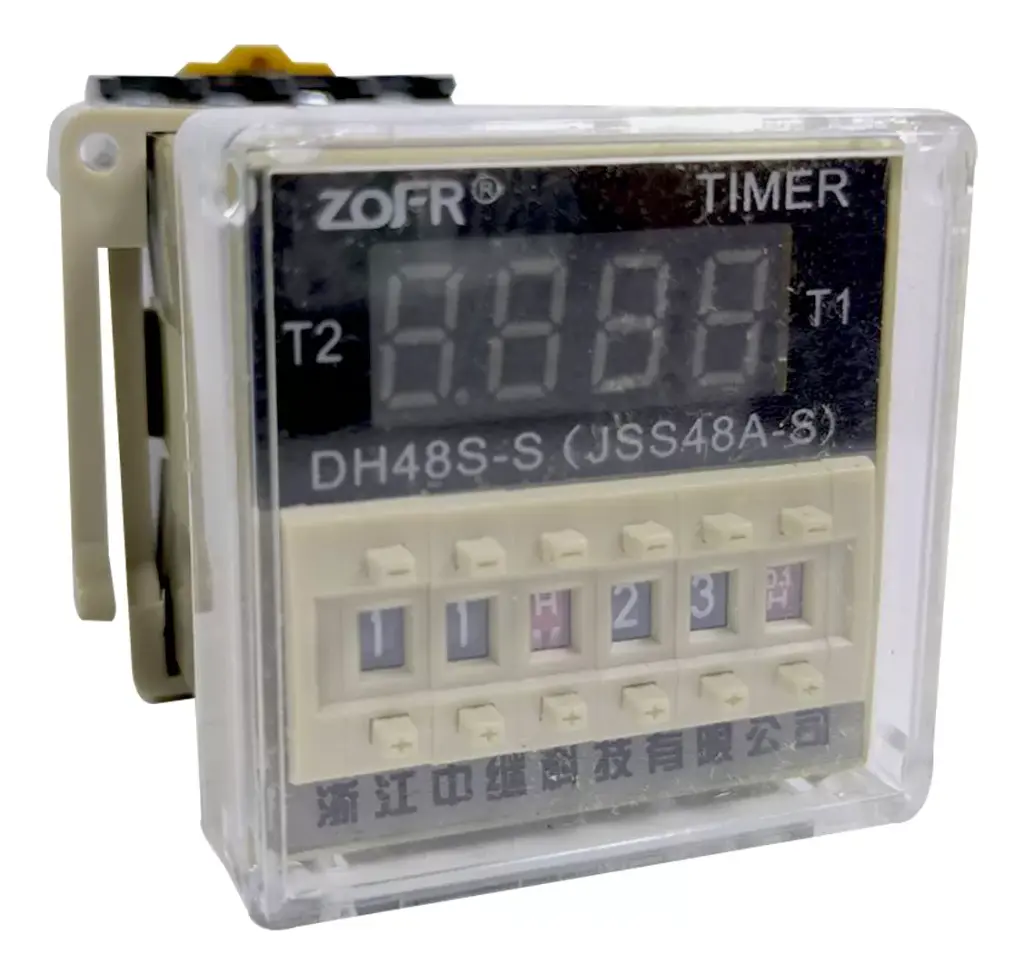

TIMER RELAY DH48S-S 220V is an auxiliary electrical part: part of the set wiring, protection or indication.
Before replacing, measure continuity and voltage under load. A terminal that shows continuity at no load can drop completely once current flows, and that is the case that wastes the most time.
Specifications and compatibility
- Brand
- BCP
- Electrical type
- Intermediate Relay / Control Relay
- Voltage (V)
- 220 VAC
- Amperage
- 100 mA
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- RELÉ TEMPORIZADOR DH48S-S 110V
- RELÉ TEMPORIZADOR DH48S-S 380V
- RELÉ TEMPORIZADOR DH48SS-S 24V
- RELÉ JZX22F(D)
- RELÉ RXM4LB2P7
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Voltage (V) | 220 VAC |
| Brand | BCP |
| Amperage (A) | 100 mA |
| Electrical power | |
|---|---|
| Electrical | Interposing relay |
