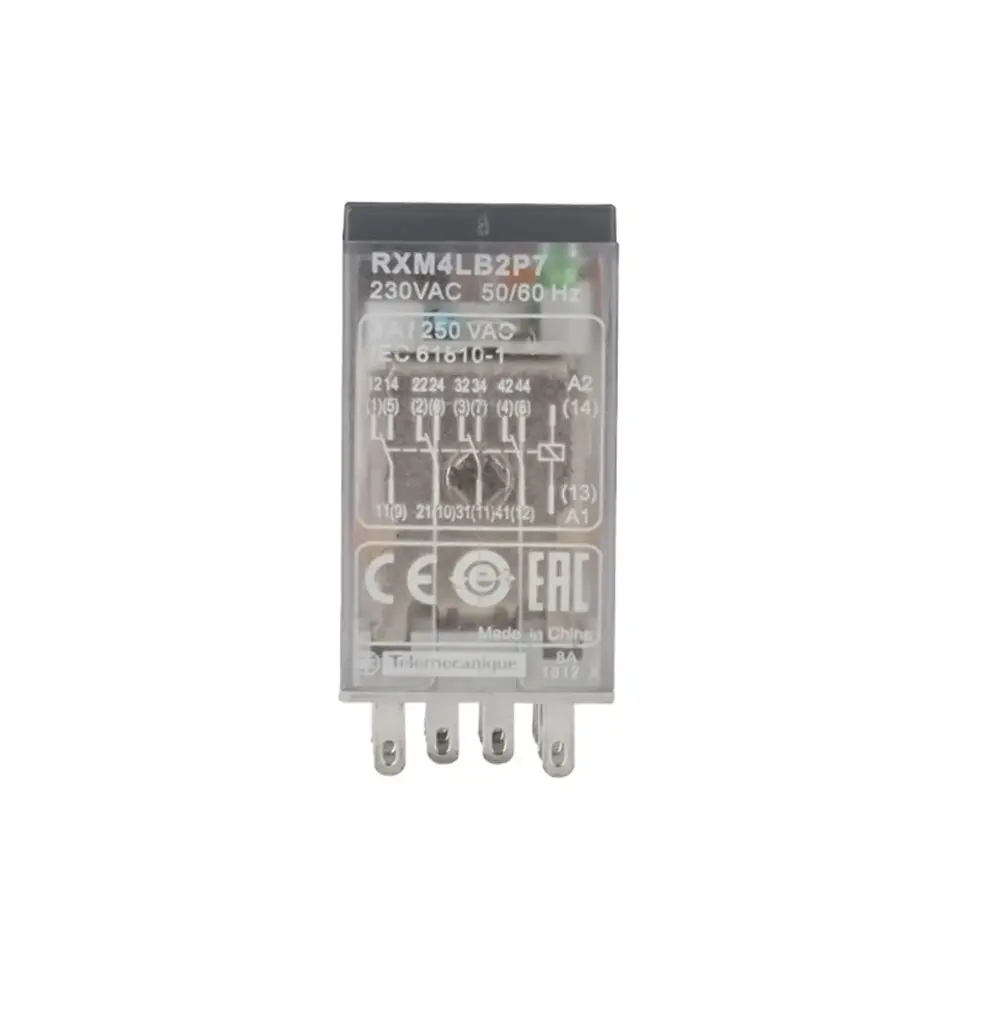

RELAY RXM4LB2P7 is an auxiliary electrical part: part of the set wiring, protection or indication.
Before replacing, measure continuity and voltage under load. A terminal that shows continuity at no load can drop completely once current flows, and that is the case that wastes the most time.
Specifications and compatibility
- Brand
- SCHNEIDER ELECTRIC
- Electrical type
- Intermediate Relay / Control Relay
- Amperage
- 3 A
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
- Declared make or line: SCHNEIDER ELECTRIC. If your equipment carries another make, the part may not be equivalent.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Pins | 14P |
| Amperage (A) | 3 A |
| Brand | SCHNEIDER ELECTRIC |
| Electrical power | |
|---|---|
| Electrical | Interposing relay |
