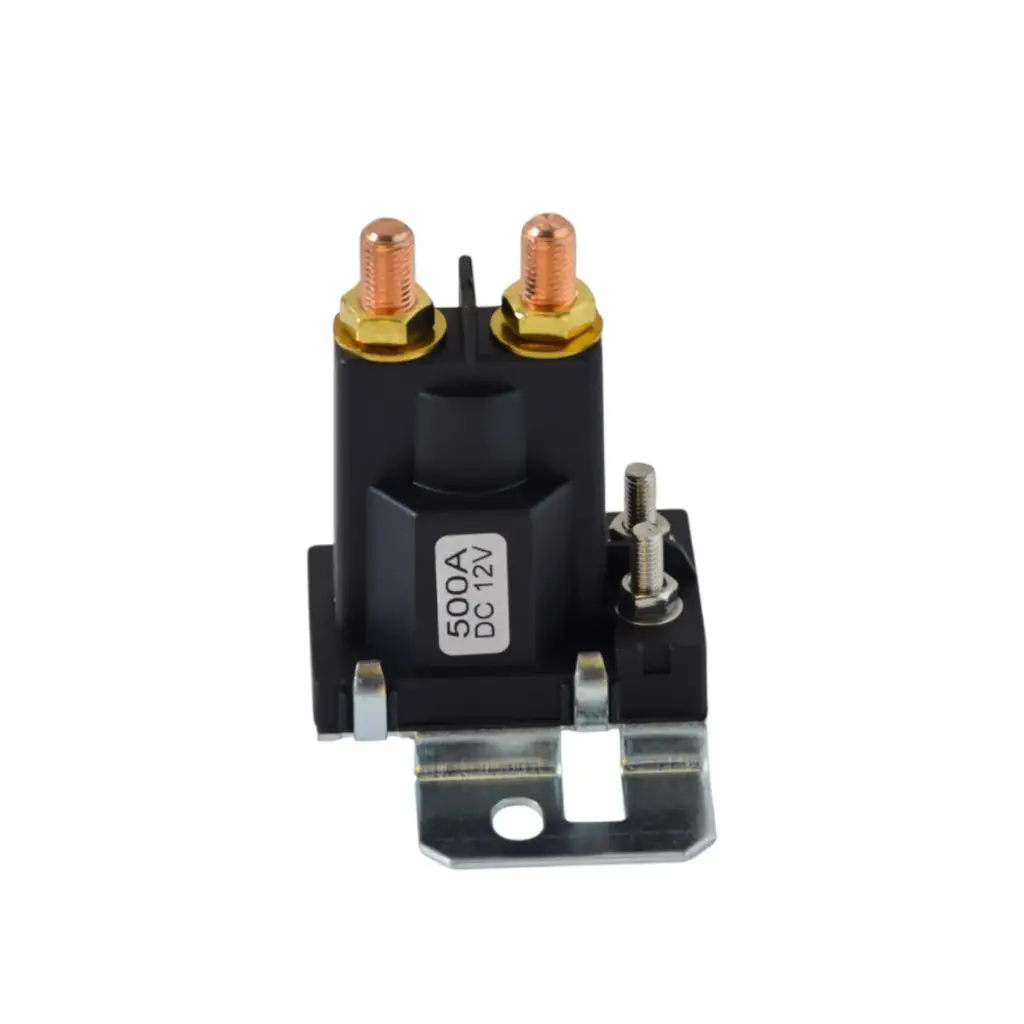

Relay 500A is an auxiliary electrical part: part of the set wiring, protection or indication.
Before replacing, measure continuity and voltage under load. A terminal that shows continuity at no load can drop completely once current flows, and that is the case that wastes the most time.
Specifications and compatibility
- Voltage (V)
- 24 VDC
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- DIODO DE PERILLA ZX150-12 NEGATIVO
- DIODO DE PERILLA ZX150-12 POSITIVO
- DIODO DE PERILLA 40A - NEGATIVO ZX40-12
- DIODO DE PERILLA ZX40-12 POSITIVO
- KIT RECTIFICADOR T18
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Voltage (V) | 12 VDC, 24 VDC |
| Spare Parts | |
|---|---|
| Engine parts | Electrical system |
