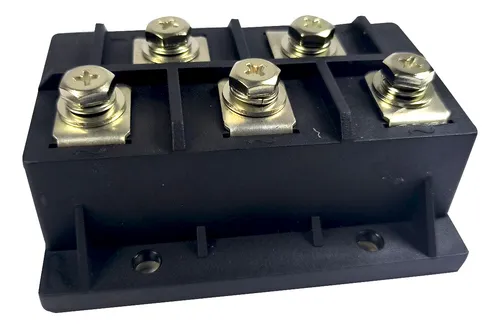

Rectifier bridge - Universal rectifier bridge MDS150/16
El MSD150-16 es un módulo de puente rectificador trifásico, diseñado para manejar aplicaciones de alta potencia. Este robusto componente soporta una tensión de retorno máxima de 1.6kV y una corriente conductiva de 150A, con una capacidad de corriente en impulso máxima de 1.5kA. Su diseño en formato de módulo, con montaje eléctrico y mecánico atornillado, facilita su instalación segura. Además, presenta una corriente conductiva máxima de 1.3V y cuenta con tornillos M6 en su salida para una conexión sencilla y fiable.
Universal bridge rectifier MDS150/16 is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Amperage
- 150 A
- Dimensions
- 8,5 x 5,5 x 9 cm
- Weight
- 0.50 kg
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- PUENTE RECTIFICADOR UNIVERSAL SQL40A/1200
- PUENTE RECTIFICADOR UNIVERSAL M50100TB1600
- KIT RECTIFICADOR PUENTE NEGRO 330-25777A
- KIT RECTIFICADOR RSK6001
- KIT RECTIFICADOR RSK5001
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 150 A |
| Weight | 0,50 kg |
| Dimensions | 8500*5500*9000 mm |
| Spare Parts | |
|---|---|
| Generator Parts | Rectifier bridge assembly |
