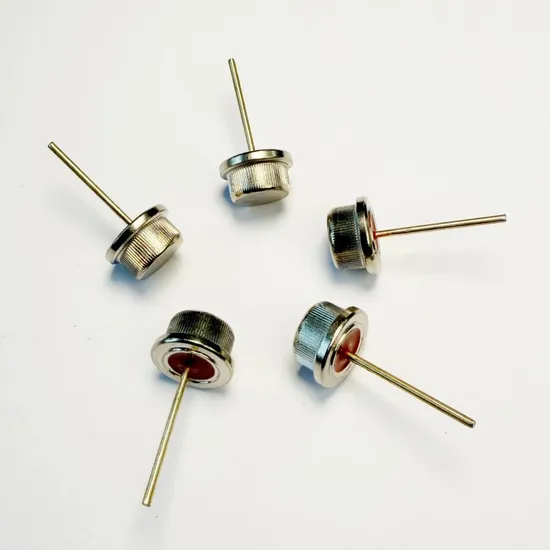

Press-Fit Diode is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Model
- 50A -
- Amperage
- 10 A
- Dimensions
- 5 x 5 x 5 cm
- Weight
- 0.20 kg
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
- The reference shown on this listing is 50A -; cross-check it against the one stamped on the removed part.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- Diodo de Perilla
- Contactor de CA - CJ20
- Lámparas LED - alumbrado público alumbrado público (tipo plano)
- Transformador tipo caja - Serie BCP-13.8kV
- Luz piloto led - AD16-22D/S
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Model | 50A +, 50A -, 10A +, 10A -, 25A +, 15A +, 25A -, 15A -, 35A +, 35A - |
| Amperage (A) | 10 A, 15 A, 25 A, 35 A, 50 A |
| Weight | 0,20 kg |
| Dimensions | 50*50*50 mm |
