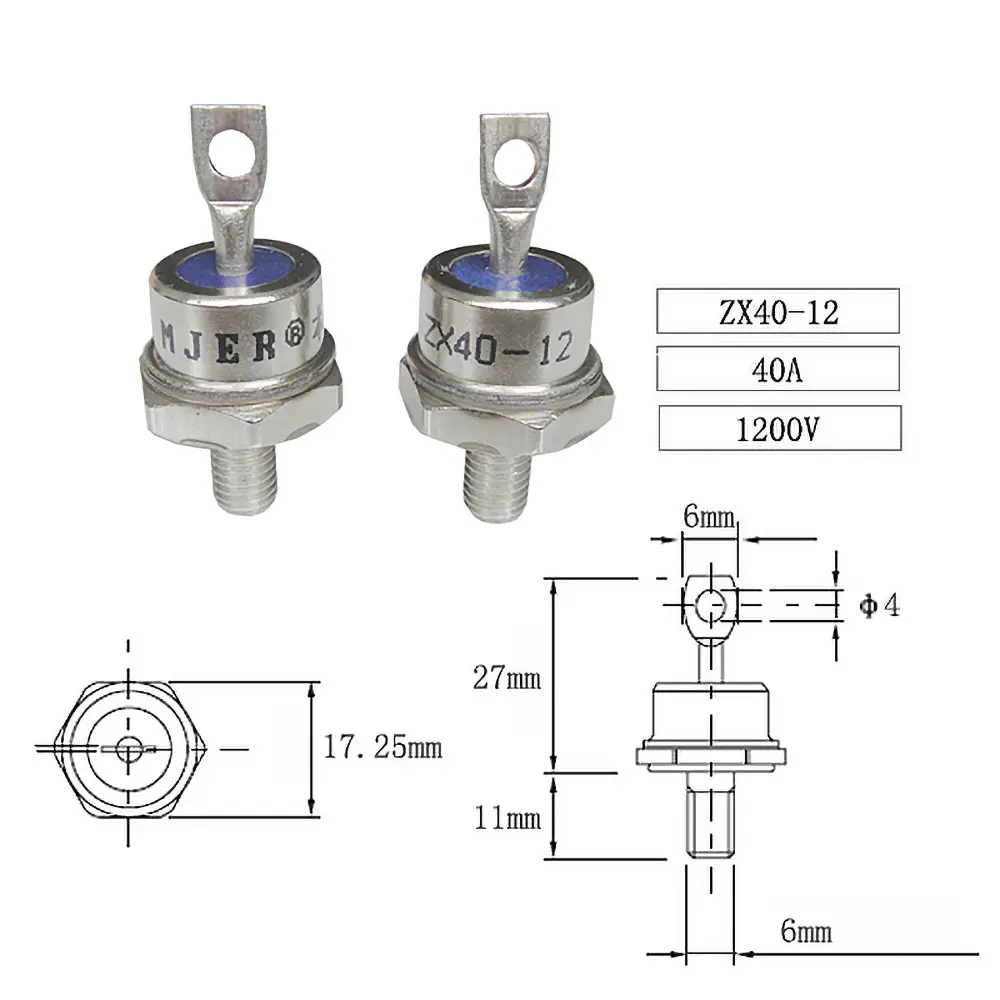

Knob Diode is an auxiliary electrical part: part of the set wiring, protection or indication.
Before replacing, measure continuity and voltage under load. A terminal that shows continuity at no load can drop completely once current flows, and that is the case that wastes the most time.
Specifications and compatibility
- Model
- 600A -
- Amperage
- 150 A
- Dimensions
- 5 x 5 x 5 cm
- Weight
- 0.20 kg
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
- The reference shown on this listing is 600A -; cross-check it against the one stamped on the removed part.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- Diodo de Apriete por Presión
- Contactor de CA - CJ20
- Lámparas LED - alumbrado público alumbrado público (tipo plano)
- Transformador tipo caja - Serie BCP-13.8kV
- Luz piloto led - AD16-22D/S
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Model | 40A +, 150A +, 400A +, 40A -, 150A -, 400A -, 70A +, 100A +, 500A +, 100A -, 70A -, 500A -, 200A +, 600A +, 200A -, 600A -, 25A +, 300A +, 25A -, 300A - |
| Amperage (A) | 25 A, 40 A, 70 A, 100 A, 150 A, 200 A, 300 A, 400 A, 500 A, 600 A |
| Weight | 0,20 kg |
| Dimensions | 50*50*50 mm |
