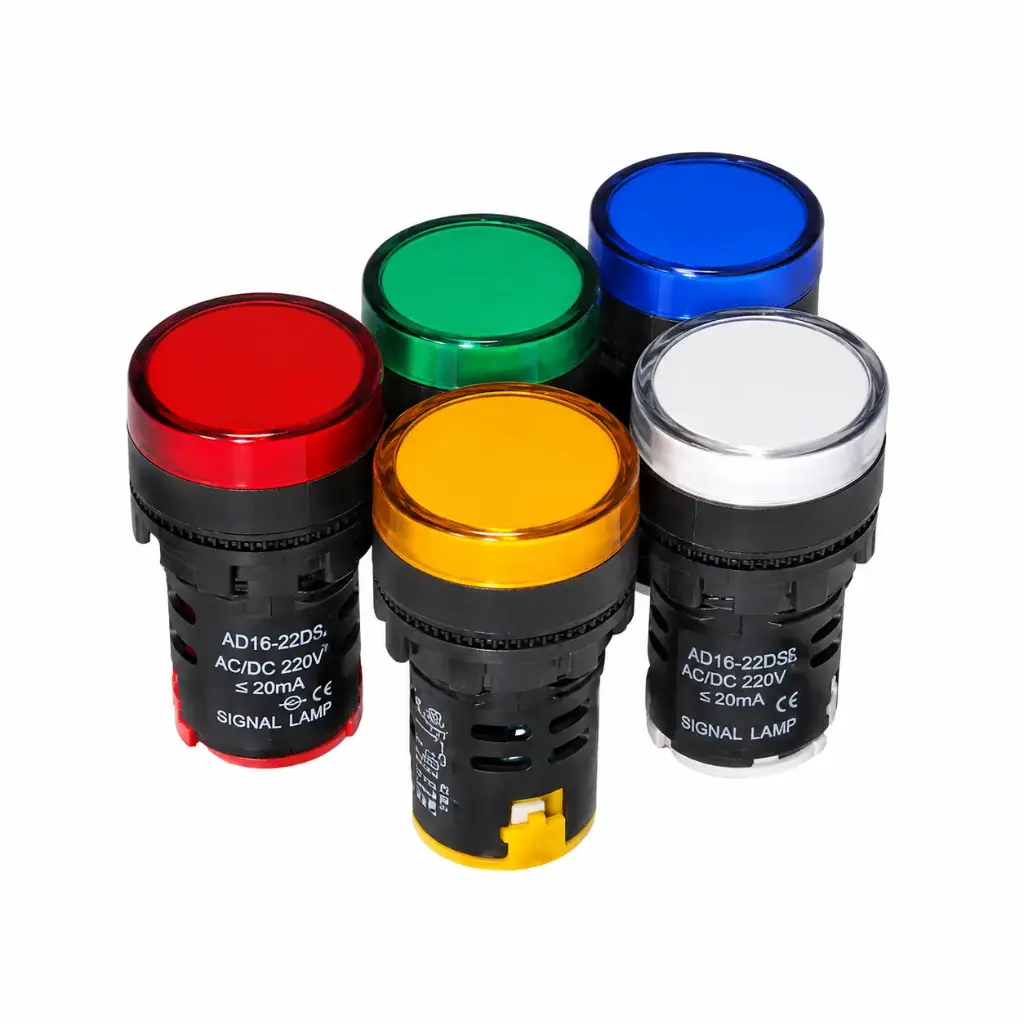

Led Pilot Light - AD16-22D/S is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Voltage (V)
- 24 V
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- Transformador tipo caja - Serie BCP-13.8kV
- Lámparas LED - alumbrado público alumbrado público (tipo plano)
- Contactor de CA - CJ20
- Diodo de Apriete por Presión
- Diodo de Perilla
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Color | White, Red, Yellow, Green, Blue |
| Voltage (V) | 6.3 V, 12 V, 36 V, 48 V, 110 V, 220 V, 24 V |
