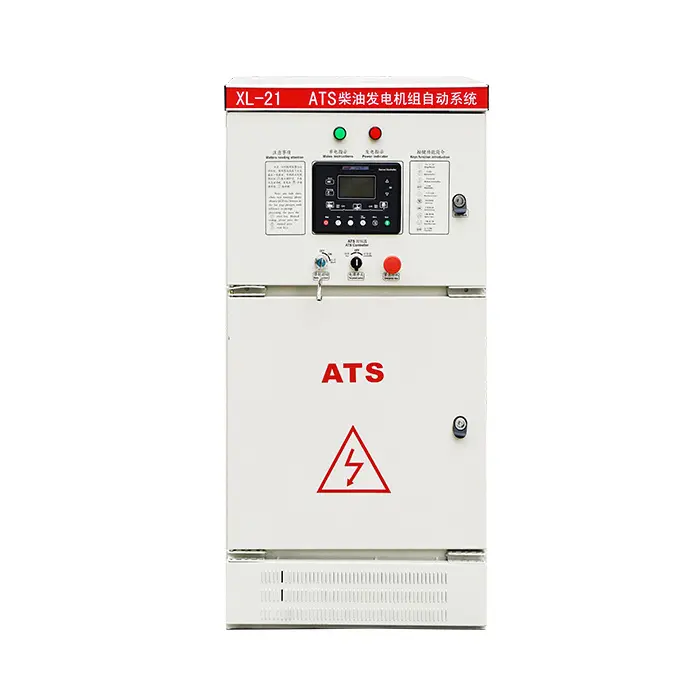

Transfer switch - Customized ATS Power Distribution System Cabinet

Transfer switch - Customized ATS Power Distribution System Cabinet

https://generator.bochipower.com/web/image/product.template/3311/image_1920?unique=2159135
(0 review)

$ 0.00 Tax Excluded

1,957.51 Bs Tax Excluded

  • Model
  • Voltage (V)

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Customized ATS Power Distribution System Cabinet switches the load between mains and generator: it monitors the mains, commands the start, transfers, and re-transfers with a delay so the set is not shocked.

In contactor-based ATS the wear is in the main contacts and the mechanical interlock. In motorised-breaker ATS it is the charging motor and the limit switches. Knowing which one your panel uses tells you what to keep in stock.

Specifications and compatibility

Model
ATS-1600A (1000*1800*600mm)
Voltage (V)
110/208V 127/220V 230/400V 254/440V 277/480V

How to verify before ordering

  • Match the number of poles, the rated current and the switching type (contactor or motorised breaker).
  • Check the ATS control voltage: 110 V, 220 V or 24 V depending on the panel it goes into.
  • Confirm whether neutral is switched. On installations with a distributed neutral this is mandatory.
  • The reference shown on this listing is ATS-1600A (1000*1800*600mm); cross-check it against the one stamped on the removed part.

Frequently asked questions

The set starts but the load is not transferred. What do I check?

The signal first: mains-sensing relay, control fuse and the wiring between ATS and set. Then the interlock: if the mains contactor does not release, the generator contactor will not close, by design.

Can I fit an ATS of another brand?

Yes, as long as control voltage and logic are compatible with the set panel. With a controller-based set, the ATS must accept that controller transfer signal.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Model ATS-100A（30*40*180mm）, ATS-160A（200*50*600mm）, ATS-200A（200*50*600mm）, ATS-250A（200*50*600mm）, ATS-315A（600*250*800mm）, ATS-350A（600*250*800mm）, ATS-400A（600*250*800mm）, ATS-500A（700*400*1200mm）, ATS-630A（700*400*1200mm）, ATS-800A（800*600*1600mm）, ATS-1000A（800*600*1600mm）, ATS-1250A（800*600*1600mm）, ATS-80A（30*40*180mm）, ATS-1600A（800*600*1800mm）, ATS-2000A（800*600*1800mm）, ATS-2500A（800*600*2000mm）, ATS-3200A（1000*800*2000mm）, ATS-4000A（1000*800*2000mm）, ATS-5000A（1000*1000*2000mm）, ATS-6300A（1000*1000*2200mm）, ATS-1600A (1000*1800*600mm)
Voltage (V) 110/208V 127/220V 230/400V 254/440V 277/480V
