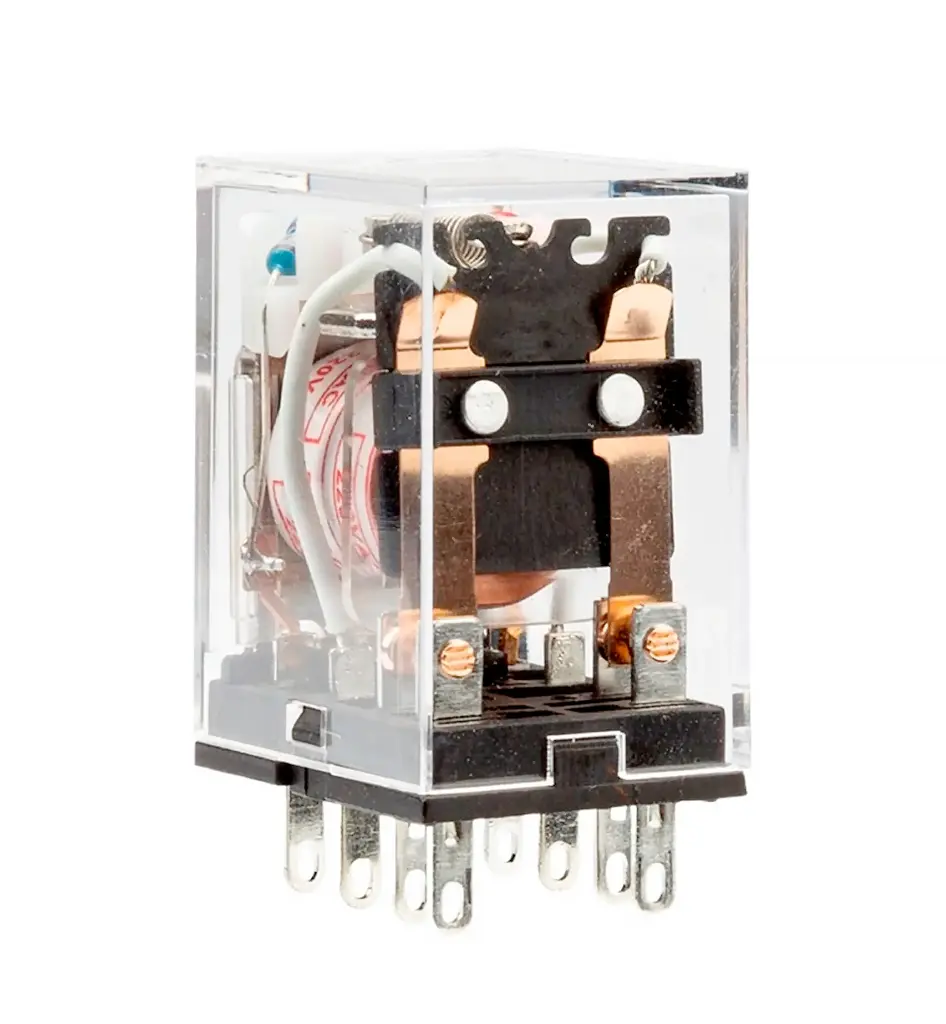

RELAY JZX22F(D) is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Brand
- CHINT
- Model
- ,4z,
- Electrical type
- Intermediate Relay / Control Relay
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
- The reference shown on this listing is ,4z,; cross-check it against the one stamped on the removed part.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- RELÉ RXM4LB2P7
- RELÉ RXM4AB2P7
- RELÉ TEMPORIZADOR DH48SS-S 24V
- RELÉ RXM2LB2P7
- RELÉ TEMPORIZADOR DH48S-S 110V
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Pins | 14 P, 8P |
| Model | 2Z, 4Z |
| Brand | CHINT |
| Electrical power | |
|---|---|
| Electrical | Interposing relay |
