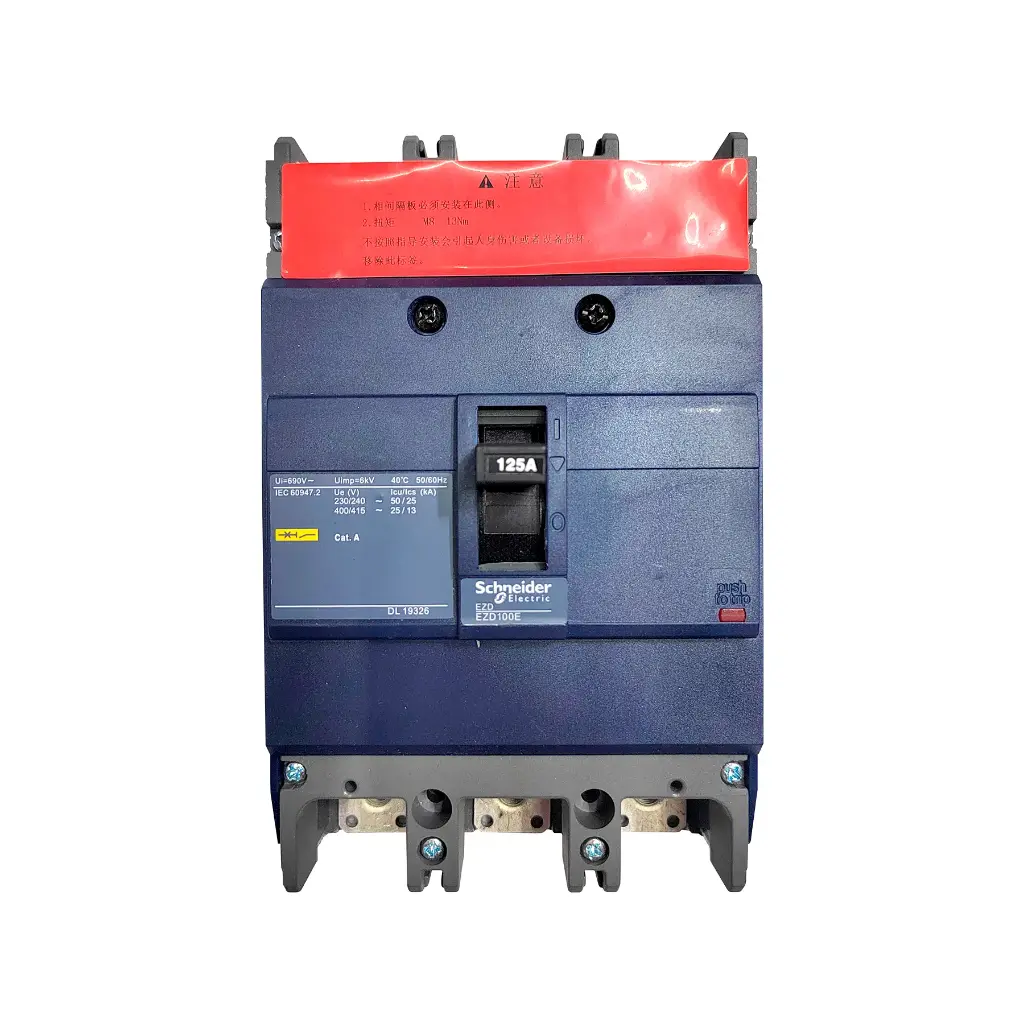

Schneider Electric Circuit Breaker EZD100E3125N 125 AMP 3P is the protection device in the power circuit: it trips on overload or fault so the damage stops before the alternator or the installation.
Ageing is counted in trip operations and in environment: dust, moisture and heat degrade the mechanism. On site panels, check terminal torque every year — most nuisance trips start there.
Specifications and compatibility
- Brand
- SCHNEIDER ELECTRIC
- Type
- Caja moldeada
- Electrical type
- Moulded Case Circuit Breaker (MCCB)
- Amperage
- 125 A
- Pole
- 3P
How to verify before ordering
- Match rated current, trip curve (B/C/D) and breaking capacity to the circuit it protects.
- Check whether the panel uses a moulded case, DIN rail or open-frame breaker, and how many poles.
- Confirm the kA rating: fitting one below the original leaves the panel unprotected against short circuit.
- Declared make or line: SCHNEIDER ELECTRIC. If your equipment carries another make, the part may not be equivalent.
Frequently asked questions
Why does the breaker trip when the set starts?
The motor inrush or the transformer magnetising current crosses the instantaneous threshold. It is solved with the right curve (type D or a short-delay setting), not by raising the rating without recalculating the cable.
Can I replace it with a higher amperage one?
Not without recalculating cable and alternator. A larger breaker leaves the cable unprotected and pushes the damage into the winding.
Related parts
- CORTA CORRIENTE JK861 DE PALANCA ROJA
- CORTA CORRIENTE JK861 DE PALANCA GRIS
- DISYUNTOR SCHNEIDER GV2-ME16C 14 AMP 3P
- FUSIBLES 3A BGDP 3A
- PORTA FUSIBLE RT18-32 10X38 32A 3POLOS 500/690V
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 125 A |
| Type | Moulded case |
| Brand | SCHNEIDER ELECTRIC |
| Pole | 3P |
| Electrical power | |
|---|---|
| Electrical | Moulded-case circuit breaker |
